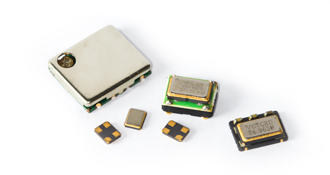

HM International Voltage Controlled Temperature-Compensated Crystal Oscillators ( VCTCXOs ) are produced with CMOS, LVPECL, LVDS or Clipped Sine Wave outputs in a wide variety of packages and specification characteristics.

Picture Product Features Dimensions (mm) Frequency Range
 sxasvt SXASVT Smallest VCTCXO package 1.65 x 1.25 x 0.6 mm 19.2 – 52.0 MHz
 sx1svt SX1SVT Miniature VCTCXO package 2.0 x 1.6 x 0.8 mm 13.0 – 52.0 MHz
 sx2svt SX2SVT Tight stability 2.5 x 2.0 x 0.8 mm 10.0 – 52.0 MHz
 sx3svt SX3SVT Standard SMD package 3.2 x 2.5 x 1.4 mm 8.192 – 52.0 MHz
 sx5svt SX5SVT Many options available 5.0 x 3.2 x 1.3 mm 6.4 – 52.0 MHz
 sx5svtg SX5SVTG High precision 5.0 x 3.2 x 2.0 mm 10.0 – 40.0 MHz
 sx7svt SX7SVT Low power consumption 7.0 x 5.0 x 2.0 mm 9.6 – 50.0 MHz
 sx7svtt SX7SVTT ±0.05ppm -10°C/+70°C 7.0 x 5.0 x 1.9 mm 5.0 – 40.0 MHz
 sx7svtr SX7SVTR Stratum 3 compliant 7.0 x 5.0 x 2.0 mm 5.0 – 26.0 MHz
 sp4svt SP4SVT Metal SMD case 11.4 x 9.6 x 2.5 mm 9.6 – 40.0 MHz
 a18svt C18SVT Wide frequency range 18.3 x 11.7 x 4.5 mm 1.0 – 125.0 MHz
 a18svt A18SVT Thru-hole package 18.3 x 11.7 x 4.5 mm 1.0 – 125.0 MHz
 dlsvt DLSVT DIL14 package 20.7 x 13.1 x 5.08 mm
20.7 x 13.1 x 7.48 mm
1.0 – 64.0 MHz
Picture Product Features Dimensions (mm) Frequency Range
 sx2cvt SX2CVT Ultra Miniature Package 2.5 x 2.0 x 0.9 mm 1.25 – 54MHz
 sx3cvt SX3CVT Low Current Consumption 3.2 x 2.5 x 1.1 mm 1.25 – 54MHz
 sx3cvtp SX3CVTP next-day-delivery 3.2×2.5×1.7mm 10.0- 245 MHz
 sx3cvtq SX3CVTQ Low jitter 3.2×2.5×1.7mm 10.0- 245 MHz
 sx5cvt SX5CVT Low Current Consumption 5.0 x 3.2 x 1.3 mm 1.25 – 54MHz
 sx5cvtg SX5CVTG ±0.20ppm -40°C/+85°C 5.0 x 3.2 x 1.65 mm 10.0 – 40.0MHz
 sx7cvt SX7CVT Low Current Consumption 7.0 x 5.0 x 1.5 mm 1.25 – 54MHz
 sx7cvtq SX7CVTQ Low jitter 7.0 x 5.0 x 2.5 mm 10.0- 245 MHz
 sx7cvtt SX7CVTT ±0.05ppm -10°C/+70°C 7.0 x 5.0 x 1.9 mm 5.0 – 40 MHz
 sx7cvtr SX7CVTR Stratum III compliant 7.0 x 5.0 x 2.0 mm 5.0 – 26.0 MHz
 sp4cvt SP4CVT Wide Frequency Range 11.4 x 9.6 x 2.5 mm 1.0 – 125.0 MHz
 sp2cvt SP2CVT Wide Frequency Range 14.3 x 8.7 x 5.5 mm 1.0 – 200.0 MHz
 c18cvt C18CVT Wide Frequency Range 18.3 x 11.7 x 4.5 mm 1.0 – 125.0 MHz
 a18cvt A18CVT Adjustable Frequency 18.3 x 11.7 x 4.5 mm 1.0 – 125.0 MHz
 dlcvt DLCVT Wide Frequency Range 20.7 x 13.1 x 7.48 mm 1.0 – 125.0 MHz
Picture Product Features Dimensions (mm) Frequency Range
 sx3evtp SX3EVTQ Low jitter 3.2×2.5×1.7 mm 10.0 MHz – 1450 MHz
 sx3evtq SX3EVTP next-day-delivery 3.2×2.5×1.7 mm 10.0 MHz – 1450 MHz
  SX7EVTQ Low jitter 7.0 x 5.0 x 2.5 mm 10.0 MHz – 1450 MHz
Picture Product Features Dimensions (mm) Frequency Range
 sx3lvtp SX3LVTQ Low jitter 3.2×2.5×1.7 mm 10.0 MHz – 1450 MHz
 sx3lvtq SX3LVTP next-day-delivery 3.2×2.5×1.7 mm 10.0 MHz – 1450 MHz
  SX7LVTQ Low jitter 7.0 x 5.0 x 2.5 mm 10.0 MHz – 1450 MHz
Picture Product Features Dimensions (mm) Frequency Range
 sx7kvtm SX7KVTM Low cost 7.0 x 5.0 x 2.3 mm 32.768 kHz
