HM International Temperature-Compensated Crystal Oscillators (TCXOs) are produced with CMOS, LVPECL, LVDS, HCSL, CML or Clipped Sine Wave outputs in a wide variety of packages and specification characteristics.

Picture Product Features Dimensions (mm) Frequency Range
 sxast SXAST Smallest TCXO package 1.65 x 1.25 x 0.6 mm 19.2 – 52.0 MHz
  sx1st SX1ST Miniature TCXO package 2.0 x 1.6 x 0.7 mm 10.0 – 52.0 MHz
 sx2st SX2ST Tight stability 2.5 x 2.0 x 0.8 mm 10.0 – 52.0 MHz
 sx3st SX3ST Standard SMD package 3.2 x 2.5 x 1.4 mm 8.192 – 52.0 MHz
 sx5st SX5ST Many options available 5.0 x 3.2 x 1.3 mm 6.4 – 52.0 MHz
 sx5stg SX5STG High Precision 5.0 x 3.2 x 1.85 mm 10.0 – 52.0 MHz
 sx7st SX7ST Low power consumption 7.0 x 5.0 x 2.0 mm 5.0 – 52.0 MHz
 sx7stg SX7STG ±0.05 ppm -10°C/+70°C 7.0 x 5.0 x 1.9 mm 5.0 – 52.0 MHz
 sp4st SP4ST Metal SMD case 11.4 x 9.6 x 2.5 mm 9.6 – 40.0 MHz
 c18st C18ST Wide frequency range 18.3 x 11.7 x 4.5 mm 1.0 – 125.0 MHz
 a18st A18ST Thru-hole package 18.3 x 11.7 x 4.5 mm 1.0 – 125.0 MHz
 dlst DLST DIL14 package 20.7 x 13.1 x 7.48 mm 1.0 – 64.0 MHz
Picture Product Features Dimensions (mm) Frequency Range
sx2ct SX1CTE
Tristate function NEW
2.0 x 1.6 x 0.7 mm 10.0 – 52.0MHz
 sx2ct SX2CT Ultra Miniature Package 2.5 x 2.0 x 0.9 mm 9.5 – 60MHz
 sx2cte SX2CTE Tristate function NEW 2.5 x 2.0 x 0.8 mm 9.5 – 60MHz
 sx3ct SX3CT Low Current Consumption 3.2 x 2.5 x 1.0 mm 8.192 – 60MHz

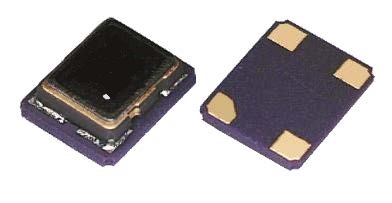

  SX3CTE Tristate function NEW 3.2 x 2.5 x 1.2 mm 9.5 – 60MHz
 sx3ctp SX3CTP next-day-delivery 3.2 x 2.5 x 1.7 mm 10.0- 245 MHz
 sx3ctq SX3CTQ Low jitter 3.2 x 2.5 x 1.7 mm 10.0- 245 MHz
sx5ct SX5CT Low Current Consumption 5.0 x 3.2 x 1.3 mm 6.4 – 52MHz
 sx5ctg SX5CTG ±0.20 ppm -40°C/+85°C 5.0 x 3.2 x 1.85 mm 10.0 – 52.0 MHz
 sx7ct SX7CT Low Current Consumption 7.0 x 5.0 x 2.3 mm 5.0 – 52 MHz
 sx7ctq SX7CTQ Low jitter 7.0 x 5.0 x 2.5 mm 10.0 – 245 MHz
 sx7ctt SX7CTG ±0.05ppm -10°C/+70°C 7.0 x 5.0 x 1.9 mm 5.0 – 52 MHz
 sp4ct SP4CT Wide Frequency Range 11.4 x 9.6 x 2.5 mm 1.0 – 125.0 MHz
 sp2ct SP2CT Wide Frequency Range 14.3 x 8.7 x 5.5 mm 1.0 – 200.0 MHz
 c18ct C18CT Wide Frequency Range 18.3 x 11.7 x 4.5 mm 1.0 – 125.0 MHz
 a18ct A18CT Adjustable Frequency 18.1 x 11.7 x 4.5 mm 1.0 – 125.0 MHz
 dlct DLCT Wide Frequency Range 20.7 x 13.1 x 5.08 mm
20.7 x 13.1 x 7.48 mm
1.0 – 125.0 MHz
Picture Product Features Dimensions (mm) Frequency Range
 sx3etp SX3ETQ Low jitter 3.2 x 2.5 x 1.7 mm 10.0 MHz – 1450 MHz
 sx3etq SX3ETP next-day-delivery 3.2 x 2.5 x 1.7 mm 10.0 MHz – 1450 MHz
  SX5ETJ Ultra Low jitter 5.0 x 3.2 x 1.5 mm 15.0 MHz – 2100 MHz
 sx7etq SX7ETQ Low jitter 7.0 x 5.0 x 2.5 mm 10.0 MHz – 1450 MHz
Picture Product Features Dimensions (mm) Frequency Range
 sx3ltq SX3LTQ Low jitter 3.2 x 2.5 x 1.7 mm 10.0 MHz – 1450 MHz
 sx3ltp SX3LTP next-day-delivery 3.2 x 2.5 x 1.7 mm 10.0 MHz – 1450 MHz
  SX5LTJ Ultra Low jitter 5.0 x 3.2 x 1.5 mm 15.0 MHz – 2100 MHz
  SX7LTQ Low jitter 7.0 x 5.0 x 2.5 mm 10.0 MHz – 1450 MHz
Picture Product Features Dimensions (mm) Frequency Range
  SX5HTJ Ultra Low jitter 5.0 x 3.2 x 1.5 mm 15.0 MHz – 700.0 MHz
Picture Product Features Dimensions (mm) Frequency Range
  SX5MTJ Ultra Low jitter 5.0 x 3.2 x 1.5 mm 15.0 MHz – 2100 MHz
Picture Product Features Dimensions (mm) Frequency Range
 sx2ktf SX2KTF Very low µA current NEW 2.15 x 1.35 x 1.2 mm 32.768 kHz
 sx3ktf SX3KTF Very low µA current 3.28 x 2.5 x 1.4 mm 32.768 kHz
 sx7ktm SX7KTM Low cost 7.0 x 5.0 x 2.3 mm 32.768 kHz
